Concepts

Workflows & activities

The DAG model, triggers, variables, and the execution lifecycle — with runnable curl / Python / Node examples.

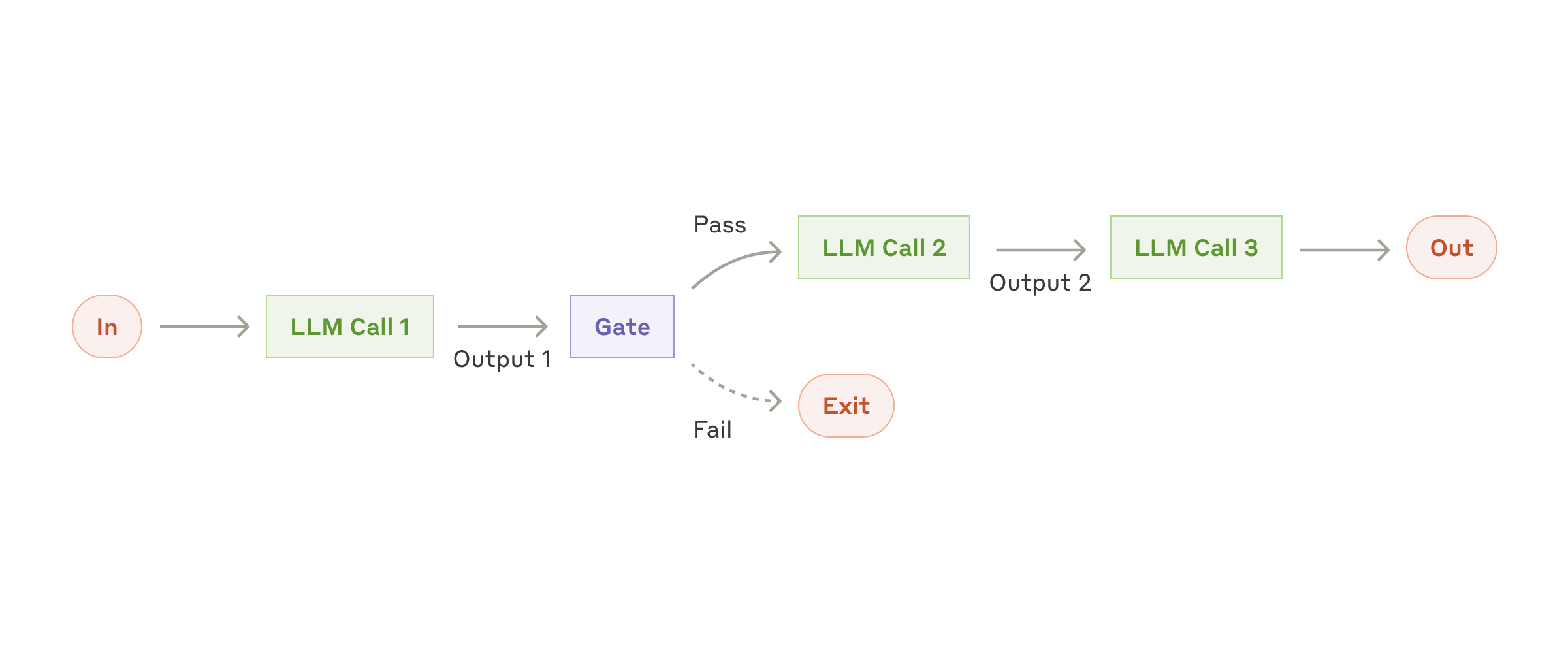

A workflow is a directed acyclic graph (DAG) of nodes. The saved, reusable definition is an activity (/api/activities); each run of it is a workflow execution (/api/workflow-executions). The graph is acyclic by design — decision nodes create branches, never loops.

What you'll build

By the end of this page you'll be able to define a workflow as an activity, trigger an execution, poll it to a terminal state, and read the per-node outputs — driving the whole thing over HTTP in curl, Python, or Node.

Prerequisites

  • A JWT for the authenticated /activities and /workflow-executions calls — see Authentication. (Webhook triggers use a per-webhook secret instead — see Quickstart.)
  • The base URL. Staging is https://apisandbox.turfai.in/api; local is http://localhost:1338/api. Examples below use staging.
  • A saved activity id to run — create one in the worked example below, or use one you built in the UI.

Export these once and the snippets below run as-is: export TURFAI_JWT=… and export BASE=https://apisandbox.turfai.in/api.

The workflow definition

A workflow_definition has nodes, edges, and an input_schema. Each node declares a task_type and a config; edges connect node IDs. Two output_schema and input_schema fields on the activity describe the run's overall contract.

Frontend vs backend node format. The React Flow builder stores node.type as the specific task type (e.g. "classification_task"). The executor only runs nodes whose type === "task", reading the real type from node.data.task_type. When you author a definition by hand for execution, use the backend format below (type: "task"), and always include input_schema — omitting it is a 400 ("does not include an input schema"). See data schemas.

{
  "nodes": [
    {
      "id": "classify-1",
      "type": "task",
      "position": { "x": 0, "y": 0 },
      "data": {
        "label": "Classify Document",
        "task_type": "classification_task",
        "config": { "classification_type": "document_type" }
      }
    },
    {
      "id": "extract-1",
      "type": "task",
      "position": { "x": 240, "y": 0 },
      "data": {
        "label": "Extract Data",
        "task_type": "extraction_task",
        "config": { "output_format": "json" }
      }
    }
  ],
  "edges": [
    { "id": "e1", "source": "classify-1", "target": "extract-1" }
  ],
  "input_schema": {
    "type": "object",
    "required": ["file_url"],
    "properties": { "file_url": { "type": "string" } }
  }
}

Validate a definition before saving with POST /workflows/validate — it catches cycles and edges that reference missing nodes, returning { "valid": true, "errors": [] }.

Define an activity

POST /activities saves a workflow_definition as a reusable activity and returns its id. GET /activities/:id reads one back. Both need your JWT. (Note the Strapi data envelope on the request and response.)

# Create
curl -X POST "$BASE/activities" \
  -H "Authorization: Bearer $TURFAI_JWT" \
  -H "Content-Type: application/json" \
  -d '{
    "data": {
      "name": "Invoice triage",
      "workflow_type": "document_processing",
      "status": "draft",
      "workflow_definition": { "nodes": [], "edges": [], "input_schema": { "type": "object", "properties": {}, "required": [] } }
    }
  }'

# Read it back (id from the create response)
curl "$BASE/activities/42" -H "Authorization: Bearer $TURFAI_JWT"
import os, requests

BASE = os.environ["BASE"]
HEAD = {"Authorization": f"Bearer {os.environ['TURFAI_JWT']}"}

def create_activity(definition: dict) -> int:
    r = requests.post(f"{BASE}/activities", headers=HEAD, json={
        "data": {
            "name": "Invoice triage",
            "workflow_type": "document_processing",
            "status": "draft",
            "workflow_definition": definition,
        }
    })
    r.raise_for_status()
    return r.json()["data"]["id"]

def get_activity(activity_id: int) -> dict:
    r = requests.get(f"{BASE}/activities/{activity_id}", headers=HEAD)
    r.raise_for_status()
    return r.json()["data"]
const BASE = process.env.BASE!;
const HEAD = {
  Authorization: `Bearer ${process.env.TURFAI_JWT}`,
  "Content-Type": "application/json",
};

export async function createActivity(definition: object): Promise<number> {
  const res = await fetch(`${BASE}/activities`, {
    method: "POST",
    headers: HEAD,
    body: JSON.stringify({
      data: {
        name: "Invoice triage",
        workflow_type: "document_processing",
        status: "draft",
        workflow_definition: definition,
      },
    }),
  });
  if (!res.ok) throw new Error(`create failed: ${res.status}`);
  return (await res.json()).data.id;
}

export async function getActivity(id: number) {
  const res = await fetch(`${BASE}/activities/${id}`, { headers: HEAD });
  if (!res.ok) throw new Error(`get failed: ${res.status}`);
  return (await res.json()).data;
}

Triggers

A workflow starts from one of:

  • Webhook — an HTTP POST (JSON or multipart/form-data file upload). Body fields become inputs; uploaded files inject inputs.<field>_file_url and inputs.<field>_document_id. Returns an execution_id + a short-lived polling_token. See Quickstart and the webhook guide.
  • Event — an external event (e.g. a new file in a watched Drive folder) via the Event Bus — see event-driven.
  • Schedule — a cron run.
  • Manual / direct — create the execution, then start it: POST /workflow-executions (with { "data": { "activity": 42, "inputs": {…} } }) → POST /workflow-executions/:id/execute.

Trigger an execution

The most direct path against a saved activity. execute queues the run and returns status: "queued".

# 1. Create an execution bound to activity 42
EXEC=$(curl -s -X POST "$BASE/workflow-executions" \
  -H "Authorization: Bearer $TURFAI_JWT" \
  -H "Content-Type: application/json" \
  -d '{ "data": { "activity": 42, "inputs": { "file_url": "gs://bucket/invoice.pdf" } } }' \
  | python3 -c 'import sys,json;print(json.load(sys.stdin)["data"]["id"])')

# 2. Start it
curl -X POST "$BASE/workflow-executions/$EXEC/execute" \
  -H "Authorization: Bearer $TURFAI_JWT" \
  -H "Content-Type: application/json" \
  -d '{ "inputs": { "file_url": "gs://bucket/invoice.pdf" } }'
def trigger(activity_id: int, inputs: dict) -> int:
    created = requests.post(f"{BASE}/workflow-executions", headers=HEAD, json={
        "data": {"activity": activity_id, "inputs": inputs}
    })
    created.raise_for_status()
    exec_id = created.json()["data"]["id"]

    started = requests.post(
        f"{BASE}/workflow-executions/{exec_id}/execute",
        headers=HEAD, json={"inputs": inputs},
    )
    started.raise_for_status()
    return exec_id
export async function trigger(activityId: number, inputs: object): Promise<number> {
  const created = await fetch(`${BASE}/workflow-executions`, {
    method: "POST", headers: HEAD,
    body: JSON.stringify({ data: { activity: activityId, inputs } }),
  });
  if (!created.ok) throw new Error(`create exec failed: ${created.status}`);
  const execId = (await created.json()).data.id;

  const started = await fetch(`${BASE}/workflow-executions/${execId}/execute`, {
    method: "POST", headers: HEAD, body: JSON.stringify({ inputs }),
  });
  if (!started.ok) throw new Error(`execute failed: ${started.status}`);
  return execId;
}

Variables and data flow

Reference any earlier value with {{variable}} templates; pull nested fields with JSONPath. At render time, {{var}} is replaced from the merged inputs/outputs; an unresolved reference is left intact as the literal {{var}} text (rather than blanked) — a useful tell when debugging. Variables come from three sources:

  1. Trigger payload — what the webhook/event delivered, available as inputs.*.
  2. Upstream node outputs — e.g. {{classify-1.document_type}} from a classify node.
  3. Workflow contextuser_id, execution_id.
Webhook { "file_url": "gs://bucket/invoice.pdf" }
  → classify-1 uses {{file_url}}          → outputs { "document_type": "invoice", "confidence": 0.96 }
  → route-1 branches on {{classify-1.document_type}}
  → extract-1 uses {{file_url}}           → outputs { "vendor": "Acme", "total": 1240.00 }
  → email-1 uses {{extract-1.vendor}}, {{extract-1.total}}

A complete worked example

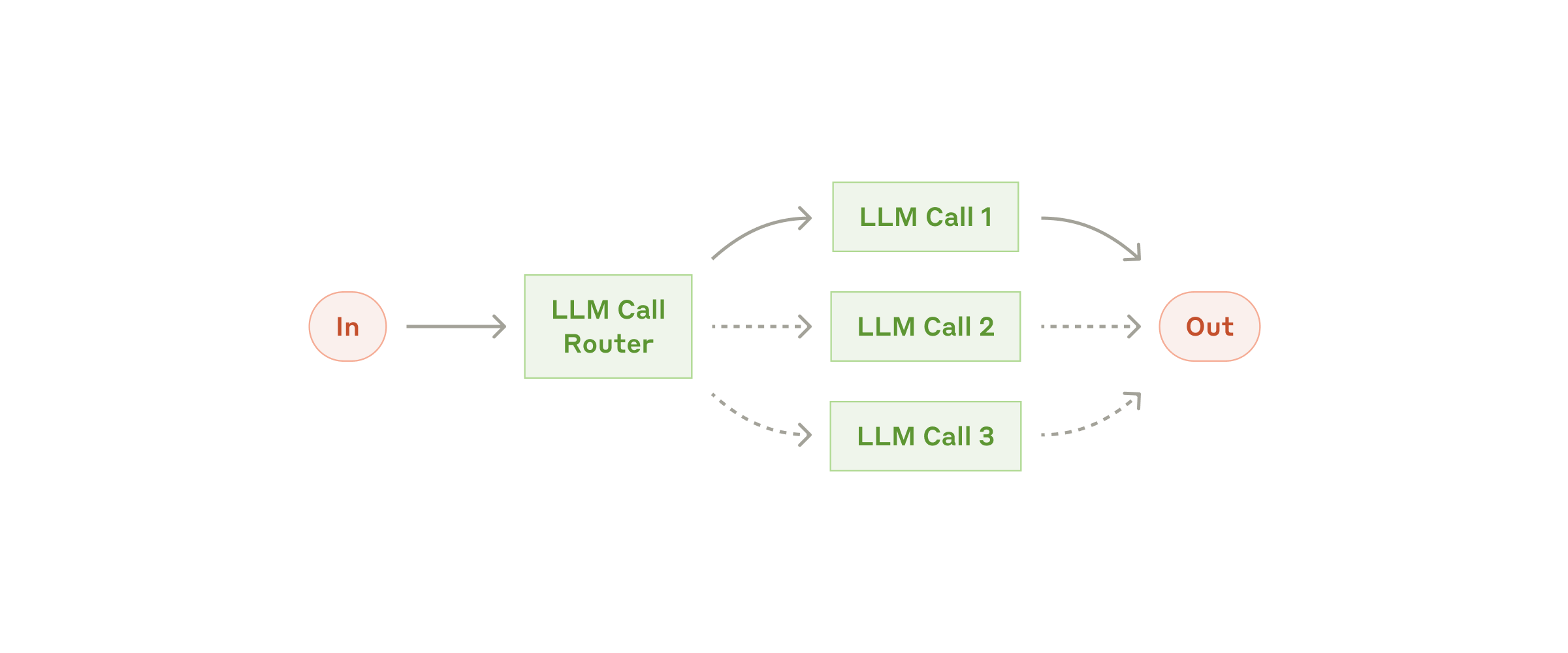

A 3-node classify → decision → extract DAG. The decision node routes on the classifier's output via labelled edges; only the matching branch runs. This is in backend node format and is ready to pass as workflow_definition to POST /activities.

{
  "nodes": [
    {
      "id": "classify-1",
      "type": "task",
      "position": { "x": 0, "y": 0 },
      "data": {
        "label": "Classify Document",
        "task_type": "classification_task",
        "config": {
          "classification_type": "document_type",
          "file_url": "{{file_url}}"
        }
      }
    },
    {
      "id": "route-1",
      "type": "task",
      "position": { "x": 240, "y": 0 },
      "data": {
        "label": "Route by type",
        "task_type": "decision_task",
        "config": { "expression": "{{classify-1.document_type}}" }
      }
    },
    {
      "id": "extract-1",
      "type": "task",
      "position": { "x": 480, "y": -80 },
      "data": {
        "label": "Extract invoice fields",
        "task_type": "extraction_task",
        "config": {
          "output_format": "json",
          "file_url": "{{file_url}}",
          "fields": ["vendor", "invoice_number", "total"]
        }
      }
    },
    {
      "id": "notify-1",
      "type": "task",
      "position": { "x": 480, "y": 80 },
      "data": {
        "label": "Flag non-invoice",
        "task_type": "email_send_task",
        "config": {
          "to": ["ops@example.com"],
          "subject": "Unrecognised document: {{classify-1.document_type}}",
          "body": "A document classified as {{classify-1.document_type}} skipped extraction."
        }
      }
    }
  ],
  "edges": [
    { "id": "e1", "source": "classify-1", "target": "route-1" },
    { "id": "e2", "source": "route-1", "target": "extract-1", "label": "invoice" },
    { "id": "e3", "source": "route-1", "target": "notify-1", "label": "other" }
  ],
  "input_schema": {
    "type": "object",
    "required": ["file_url"],
    "properties": {
      "file_url": { "type": "string", "description": "gs:// or https URL of the source document" }
    }
  }
}

Notes that trip people up:

  • Every executable node is type: "task"; the real type lives in data.task_type.
  • Email recipients (to) must be an array, even for one address — a string is counted character-by-character. See the common pitfalls.
  • Decision edges carry a label; the executor follows the edge whose label matches the decision node's output.

Execution lifecycle

Execution is asynchronous. You start a run and poll a status endpoint until a terminal state. Internally the run also flows through the queue → router → processor pipeline described in the communication standard, but as a caller you only see the statuses below.

StatusMeaning
queuedAccepted, waiting for a worker
runningExecuting nodes
awaiting_user_inputPaused at a human step (see HITL); carries awaiting_input_schema + correlation_token, resume with POST /workflow-executions/:id/resume
completedFinished; read results
failedCheck error (and the failing node in task_states)

Poll for status

GET /workflow-executions/:id/status returns the live status and per-node task_states; GET /workflow-executions/:id returns the full record including results. Poll every 2–5s and stop on a terminal status.

curl "$BASE/workflow-executions/93/status" \
  -H "Authorization: Bearer $TURFAI_JWT"
import time

def poll(exec_id: int, attempts: int = 30) -> dict:
    for _ in range(attempts):
        r = requests.get(f"{BASE}/workflow-executions/{exec_id}/status", headers=HEAD)
        r.raise_for_status()
        data = r.json()["data"]
        if data["status"] == "completed":
            return data["results"]
        if data["status"] == "failed":
            raise RuntimeError(data.get("error"))
        time.sleep(2)
    raise TimeoutError("polling timed out")
const sleep = (ms: number) => new Promise((r) => setTimeout(r, ms));

export async function poll(execId: number, attempts = 30) {
  for (let i = 0; i < attempts; i++) {
    const res = await fetch(`${BASE}/workflow-executions/${execId}/status`, { headers: HEAD });
    if (!res.ok) throw new Error(`status failed: ${res.status}`);
    const { data } = await res.json();
    if (data.status === "completed") return data.results;
    if (data.status === "failed") throw new Error(data.error);
    await sleep(2000);
  }
  throw new Error("polling timed out");
}

A completed status response (results/outputs are keyed by node id):

{
  "data": {
    "id": 93,
    "status": "completed",
    "outputs": {
      "classify-1": { "document_type": "invoice", "confidence": 0.96 },
      "extract-1": {
        "extraction_result": { "vendor": "Acme", "invoice_number": "INV-2031", "total": 1240.00 },
        "metadata": { "output_format": "json", "batch_status": "completed" }
      }
    },
    "task_states": {
      "classify-1": { "status": "completed" },
      "route-1": { "status": "completed" },
      "extract-1": { "status": "completed" }
    },
    "error": null,
    "started_at": "2025-11-19T11:28:42.000Z",
    "completed_at": "2025-11-19T11:28:44.995Z"
  }
}

Troubleshooting

SymptomLikely cause & fix
A {{var}} shows up literally in output / a field is emptyThe reference didn't resolve — the key isn't in inputs or the upstream node's output. Check the exact key ({{node-id.field}}) against outputs from a prior run.
"Executing workflow with 0 steps" / nothing runsNodes have a specific type (e.g. "email_send_task"). The executor only runs type: "task" — move the specific type into data.task_type.
POST /activities returns 400 "does not include an input schema"The definition is missing input_schema. Always include { "type": "object", "properties": {}, "required": [] }.
Validation rejects the graphA cycle or an edge pointing at a missing node id. Run POST /workflows/validate and read errors.
Execution stuck in awaiting_user_inputIt's at a human step. Submit the response and resume with POST /workflow-executions/:id/resume using the correlation_token — see the HITL guide.
401 mid-poll on a webhook-triggered runThe polling_token is a ~1h JWT scoped to one execution. Switch to your JWT or re-trigger.
failed with WORKFLOW_DEADLINE_EXCEEDEDThe run exceeded execution_deadline_seconds (default 1800s, clamped 60–14400). Raise it on the activity or split the workflow.
Transient node failure that never recoversRetries are exhausted (max_retries, resolved per-node → per-workflow → tenant → default 3). Inspect the failing node in task_states and the error.

Ownership and levels

Activities have a level: system (platform-provided), user (yours, the default), or internal (hidden transient workflows). To customize a system workflow, clone it into a user-owned copy with POST /activities/:id/instantiate — your edits won't be overwritten when the original updates. The response returns the new workflow_id. This is the same "fork" mechanism solution packs use.

Activities also carry execution controls surfaced in the table above: execution_deadline_seconds, max_retries, and a data_shield_policy (see Data Shield).
